VD66GYCCA RGB Global shutter Camera Module
|
VD66GY Camera Module |
||
|
FOV |
73° |
152° |
|
Module Size |
6.5*6.5*4.68mm |
8.5*8.5*7.15mm |
|
Object Distance |
43cm-INF |
14.4cm-INF |
|
F/NO |
2.2±5% |
2.0±5% |
|
EFL(Optical) |
3.03mm |
1.69±5% |
|
Lens Type |
Plastic |
Plastic |
|
Lens Construction |
4P |
6P |
|
Focus mode |
Fixed Focus |
|
|
Data Interface |
MIPI 1 or 2Lane |
|
|
Power |
2.8V/1.8V/1.15V |
|
|
Operating temperature range |
-30℃ to 85℃ |
|
|
Sensor Type |
VD66GYCCA |
|
|
Active Array Size |
1124*1364 |
|
|
Pixel Size |
2.61um*2.61um |
|
|
Frame rates (maximum) |
Full resolution：88fps |
|
|
IR Filter |
Clear/650nm/850nm/940nm（Optional） |
|
|

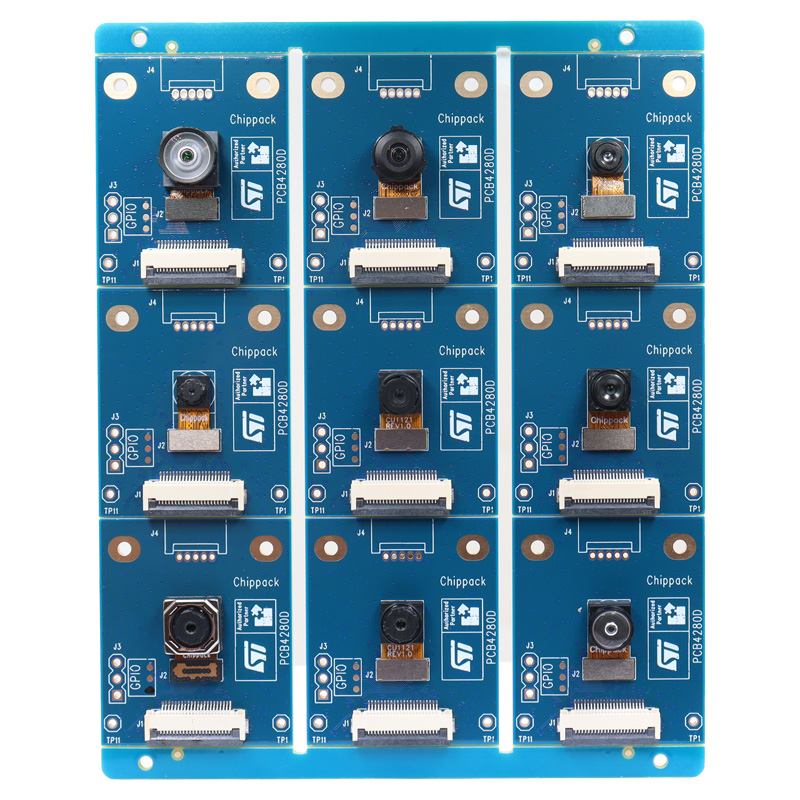

Support Customized Camera Module |
||
| Learn more details：https://www.st.com/en/imaging-and-photonics-solutions/cmos-image-sensors.html | ||
1. Basic parameters:
- Resolution: 1124 (H) x 1364 (V), 1.53MP This sensor uses the most advanced technology developed by STMicroelectronics own foundry, with excellent performance and can capture bright and sharp color images.
- Pixel size: 2.61μm (H) × 2.61μm (V), combining the three advantages of low parasitic sensitivity (PLS), high quantum efficiency (QE) and low crosstalk.
- Optical format: 1/4 inch, this size of optical format ensures a certain light collection ability while also making the sensor suitable for a variety of miniaturized devices.
- Power supply voltage: The core voltage is 1.15V, the interface voltage is 1.8V, and the analog voltage is 2.8V. It can work stably under different voltage conditions, ensuring the reliability of the sensor.
- Temperature range: The operating temperature is -30℃ to 85℃, with a wide temperature operating range, which can adapt to different working environments.
2. Technical features:
- Global shutter technology: The global shutter design effectively eliminates motion blur and lighting artifacts while reducing lighting power consumption requirements.
- Using the most advanced technology, excellent performance, and the ability to capture bright and sharp color images.
- VD66GY RGB image sensor is available in three versions: 1.5 million pixel RGB-IR version (VD16GZ), 1.5 million pixel Mono version (VD56G3).

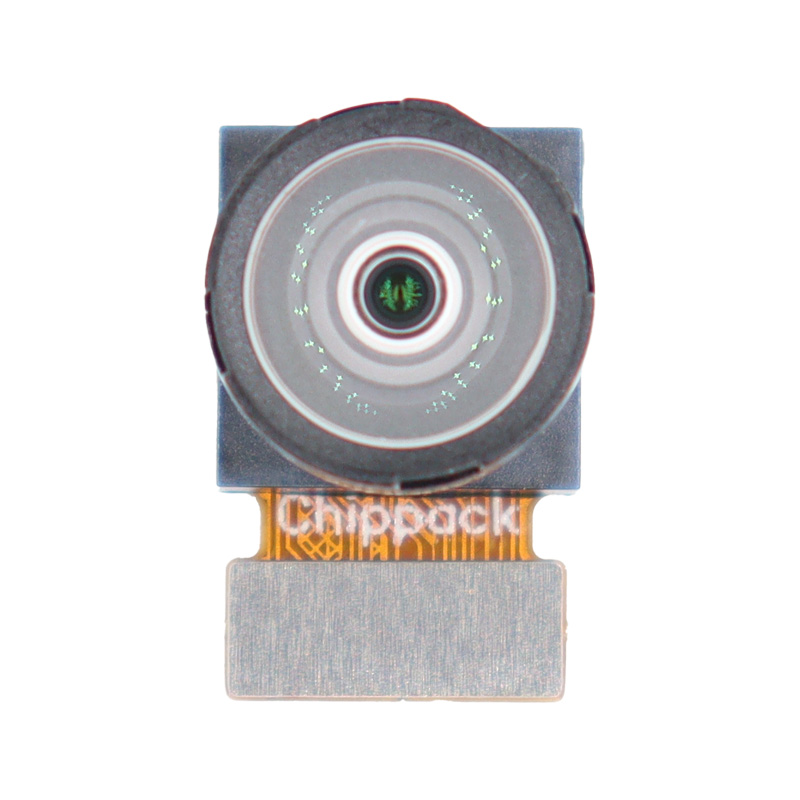

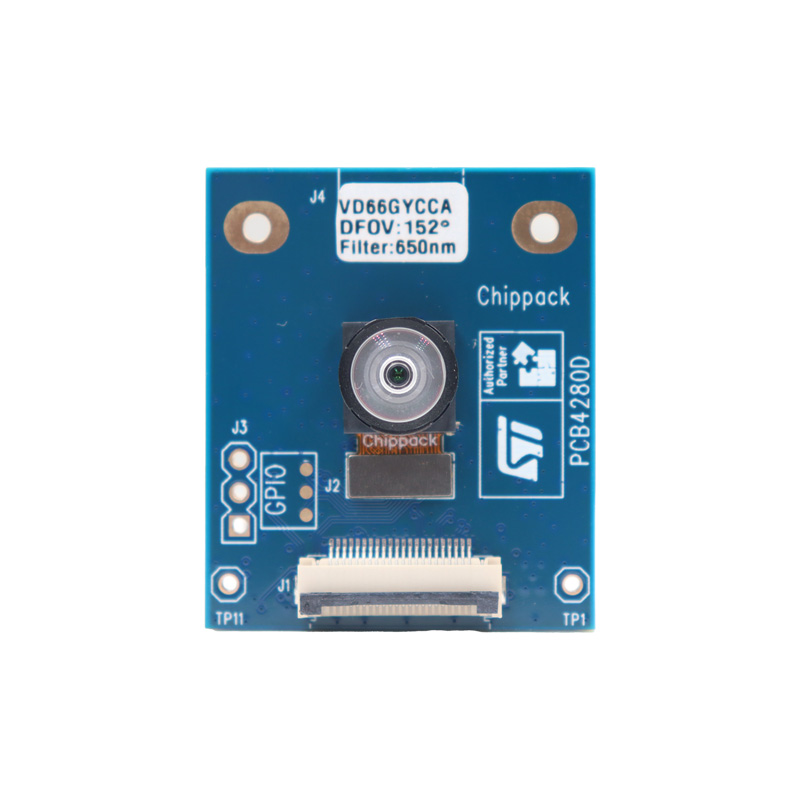

- VD66GY camera module: compatible with standard modules with different lens configurations such as 152° and 73°; meet different customer needs.
3. Application areas:
- Applied in virtual reality/augmented reality, biometrics, drones, smart homes, IoT devices, 3D imaging, machine vision, barcode scanning, factory automation and other fields.
4. Personalized customization service:
- Customized modules can be customized according to customer needs to tailor products to meet customers' needs.
