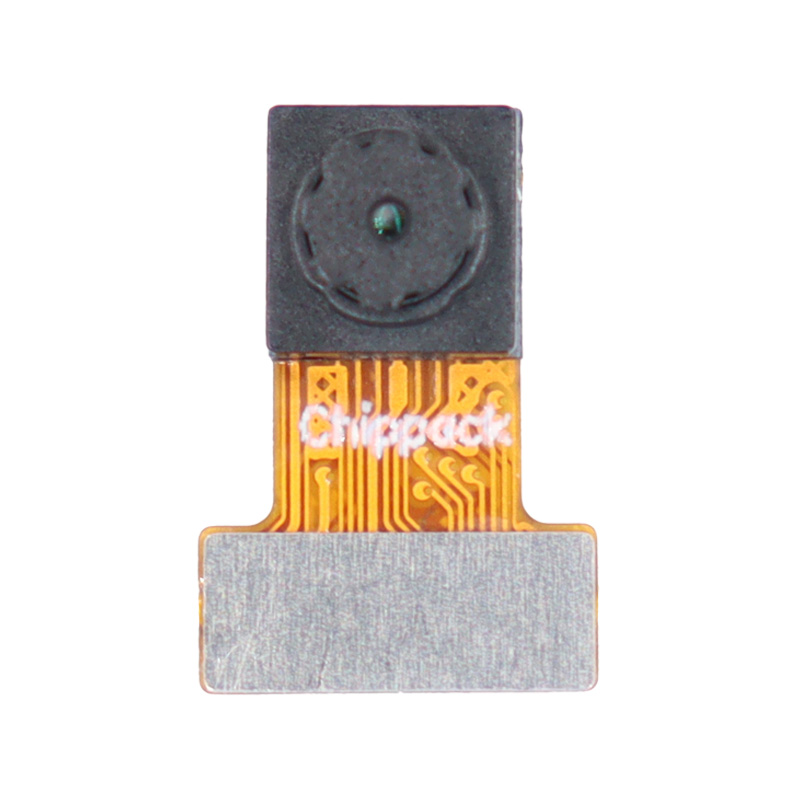

VD55G1CCB0 Mono Global shutter Camera Module
|
VD55G1 Camera Module |
|||
|
FOV |
179° |
160° |
81° |
|
Module Size |
6.5*6.5*6.04mm |
6.5*6.5*5.72mm |
5.0*5.0*2.80mm |
|
Object Distance |
4.9cm-INF |
6.4cm-INF |
15.1cm-INF |
|
F/NO |
2.0±5% |
2.0±5% |
2.0±5% |
|
EFL(Optical) |
0.71mm |
0.825±5% |
1.32±5% |
|
Lens Type |
Plastic+Glass |
Plastic |
Plastic |
|
Lens Construction |
1G5P |
5P |
4P |
|
Focus mode |
Fixed Focus |
||
|
Data Interface |
MIPI 1Lane/I3C |
||
|
Power |
2.8V/1.8V/1.15V |
||
|
Operating temperature range |
-30℃ to 85℃ |
||
|
Sensor Type |
VD55G1CCB0 |
||
|
Active Array Size |
804*704 |
||
|
Pixel Size |
2.16um*2.16um |
||
|
Frame rates (maximum) |
Full resolution：168fps |
||
|
IR Filter |
Clear/650nm/850nm/940nm（Optional） |
||
|
Support Customized Camera Module |
|||
| Learn more details：https://www.st.com/en/imaging-and-photonics-solutions/cmos-image-sensors.html | |||
1. Basic parameters:
- Resolution: 800 (H) x 700 (V), 0.56MP VD55G1 combines STMicroelectronics industry-leading pixel technology, ultra-low power consumption and advanced processing functions, making it an ideal sensor for the next generation of embedded vision systems and smart devices.
- The device is the world's first sensor to use 2.16 µm global shutter pixel technology, which has excellent compactness.
- Optical format: 1/9 inch, the sensor measures only 2.73 x 2.16 mm², suitable for devices with large size restrictions such as AR/VR glasses or personal electronic products.
- Supply voltage: The core voltage is 1.15V, the interface voltage is 1.8V, and the analog voltage is 2.8V. It can work stably under different voltage conditions, ensuring the reliability of the sensor.
- Temperature range: The operating temperature is -30℃ to 85℃, with a wide temperature operating range, which can adapt to different working environments.
2. Technical features:
- Global shutter technology: The global shutter design effectively eliminates motion blur and lighting artifacts, while reducing lighting power consumption requirements.
- This ultra-low power solution: has an intelligent automatic wake-up function, supports ultra-low power sleep mode, and can be intelligently awakened when an event is detected; can operate at a low power consumption of no more than 2 mW in automatic wake-up mode; can adjust power consumption by functions, frame rates, and software standby;
- VD55G1 advanced functions and features. For example, it supports high dynamic range (HDR) image capture, which can capture both brightness and dark details in high-contrast scenes. The sensor also supports a variety of image processing functions, such as automatic white balance, autofocus, and image noise reduction. These functions can provide richer and more realistic image effects, allowing users to take better photos and videos.

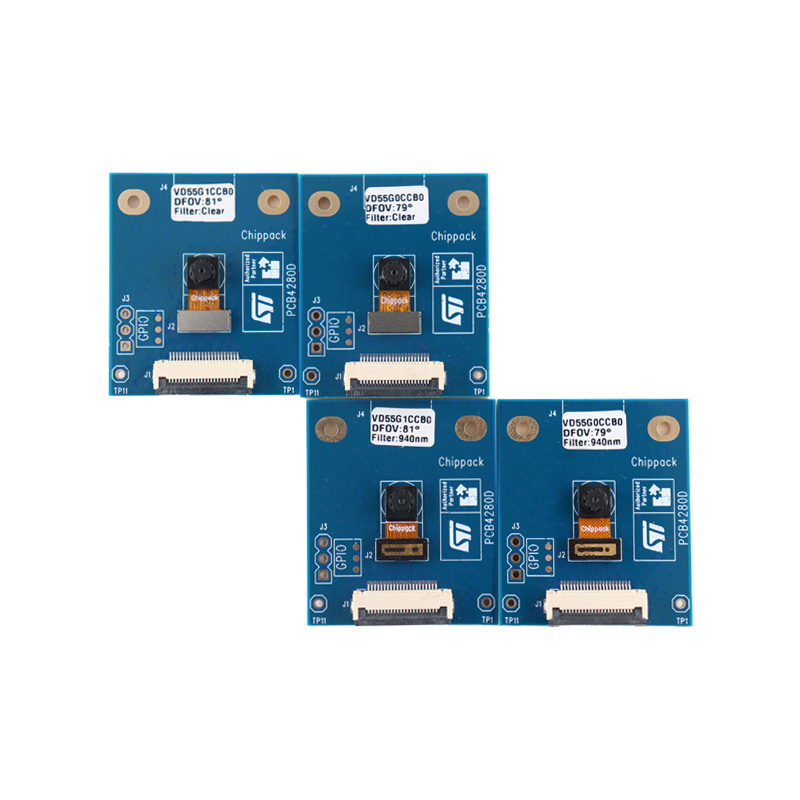

- VD55G1 camera module: compatible with standard modules with different lens configurations such as 179°, 160°, 81°, etc.; meet different customer needs.
3. Application fields:
- used in virtual reality/augmented reality, biometrics, drones, smart homes, IoT devices, 3D imaging, machine vision, barcode scanning, factory automation and other fields.
4. Personalized customization service:
-Customized modules can be customized according to customer needs to tailor products to meet customers' needs.
