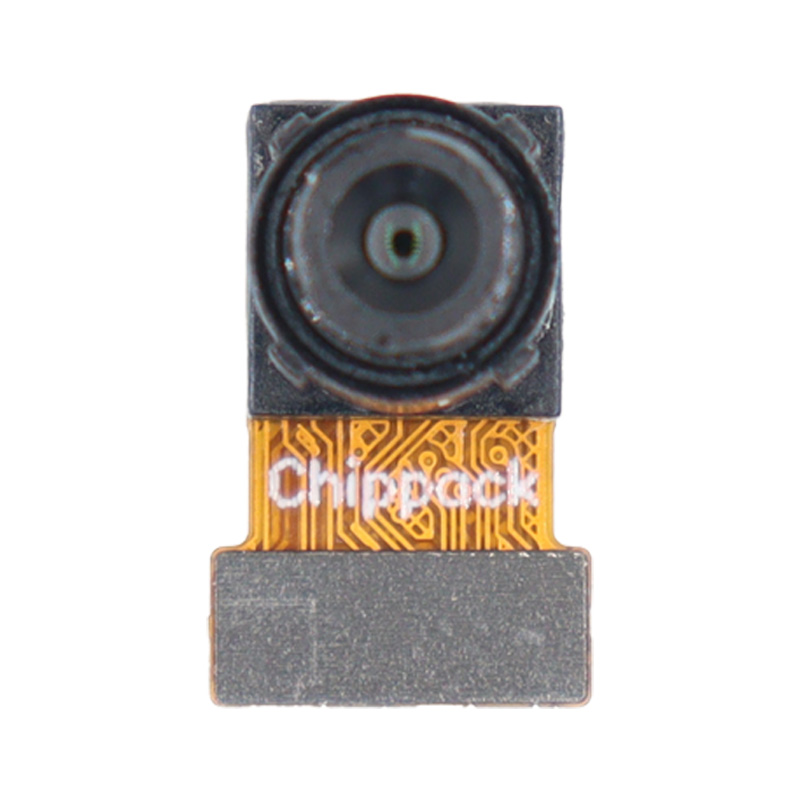

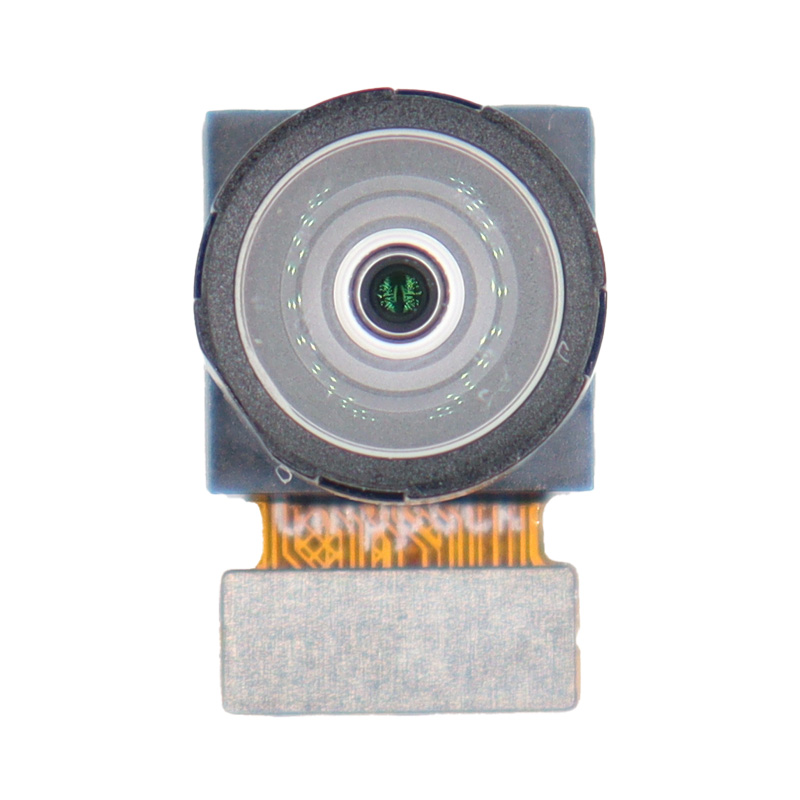

VD56G3CCA Mono Global shutter Camera Module
|
VD56G3 Camera Module |
||||
|
FOV |
49° |
73° |
121° |
152° |
|
Module Size |
6.5*6.5*6.85mm |
6.5*6.5*4.68mm |
6.5*6.5*5.22mm |
8.5*8.5*7.15mm |
|
Object Distance |
10cm – 70cm |
43cm-INF |
30cm-INF |
14.4cm-INF |
|
F/NO |
8.0±5% |
2.2±5% |
2.4±5% |
2.0±5% |
|
EFL(Optical) |
4.8mm |
3.03mm |
1.78mm |
1.69±5% |
|
Lens Type |
Plastic |
Plastic |
Plastic |
Plastic |
|
Lens Construction |
3P |
4P |
6P |
6P |
|
Focus mode |
Fixed Focus |
|||
|
Data Interface |
MIPI 1 or 2Lane |
|||
|
Power |
2.8V/1.8V/1.15V |
|||
|
Operating temperature range |
-30℃ to 85℃ |
|||
|
Sensor Type |
VD56G3CCA |
|||
|
Active Array Size |
1124*1364 |
|||
|
Pixel Size |
2.61um*2.61um |
|||
|
Frame rates (maximum) |
Full resolution：88fps |
|||
|
IR Filter |
Clear/650nm/850nm/940nm（Optional） |
|||
|
Support Customized Camera Module |
||||
| Learn more details：https://www.st.com/en/imaging-and-photonics-solutions/cmos-image-sensors.html | ||||
1. Basic parameters:
- Resolution: 1124 (H) x 1364 (V), 1.53MP uses excellent 3D stacking and STMicroelectronics patented process, and performs well in the visible light and near-infrared regions (850 nm or 940 nm).
- Pixel size: 2.61μm (H) × 2.61μm (V), combining the three advantages of low parasitic sensitivity (PLS), high quantum efficiency (QE) and low crosstalk.
- Optical format: 1/4 inch, this size of optical format ensures a certain light collection capacity while also making the sensor suitable for a variety of miniaturized devices.
- Power supply voltage: The core voltage is 1.15V, the interface voltage is 1.8V, and the analog voltage is 2.8V. It can work stably under different voltage conditions, ensuring the reliability of the sensor.
- Temperature range: The operating temperature is -30℃ to 85℃, with a wide temperature operating range, which can adapt to different working environments.
2. Technical features:
- Global shutter technology: The global shutter design effectively eliminates motion blur and lighting artifacts, while reducing lighting power consumption requirements.
- Full pixel packaging technology is used to provide excellent photosensitivity and image sharpness in the visible to near-infrared spectrum range (such as 850 nm or 940 nm), and the ability to capture details is unparalleled.
- The VD56G3 monochrome image sensor has three versions: 1.5 million pixel RGB version (VD66GY), 1.5 million pixel RGB-IR version (VD16GZ).
- VD56G3 camera module: compatible with standard modules with different lens configurations such as 152°, 120°, 73°, 49°, etc.; meet different customer needs.
3. Application areas:
-used in virtual reality/augmented reality, biometrics, drones, smart homes, IoT devices, 3D imaging, machine vision, barcode scanning, factory automation and other fields.
4. Personalized customization service:
-Customized modules can be customized according to customer needs, and tailor-made products that meet customers' needs.
