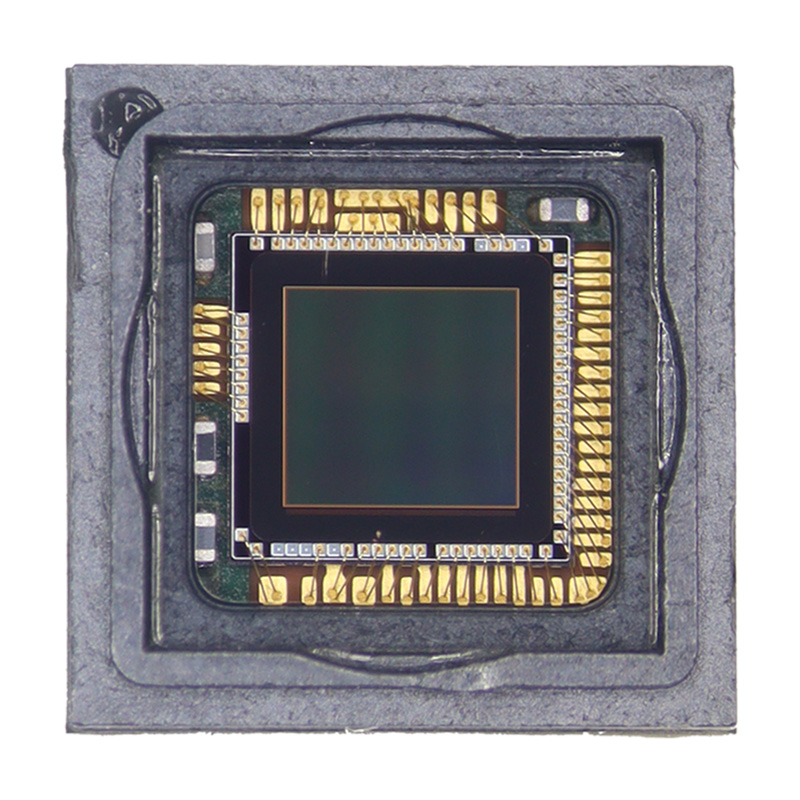

VD55G0CCA1 0.4MP PLCC28 Global shutter

1. Basic parameters:

- Resolution: 644 (H) x 604 (V), 0.38MP The device uses a three-dimensional stacked sensor, and the pixel structure minimizes crosstalk while achieving high quantum efficiency (QE) in the near-infrared spectrum.

- It uses 40 nm/65 nm technology, has 2.61 µm x 2.61 µm BSI pixels and full CDTI (capacitive deep trench), which is an excellent choice for high-performance imaging applications. .

- Optical format: 1/9 inch, the sensor measures only 1.67 x 1.57 mm², suitable for devices with large size restrictions such as AR/VR glasses or personal electronics.

- Supply voltage: The core voltage is 1.15V, the interface voltage is 1.8V, and the analog voltage is 2.8V. It can work stably under different voltage conditions, ensuring the reliability of the sensor.

- Temperature range: The operating temperature is -30℃ to 85℃, with a wide temperature operating range, which can adapt to different working environments.

2. Technical features:

- Global shutter technology: The global shutter design effectively eliminates motion blur and lighting artifacts, while reducing lighting power consumption requirements.

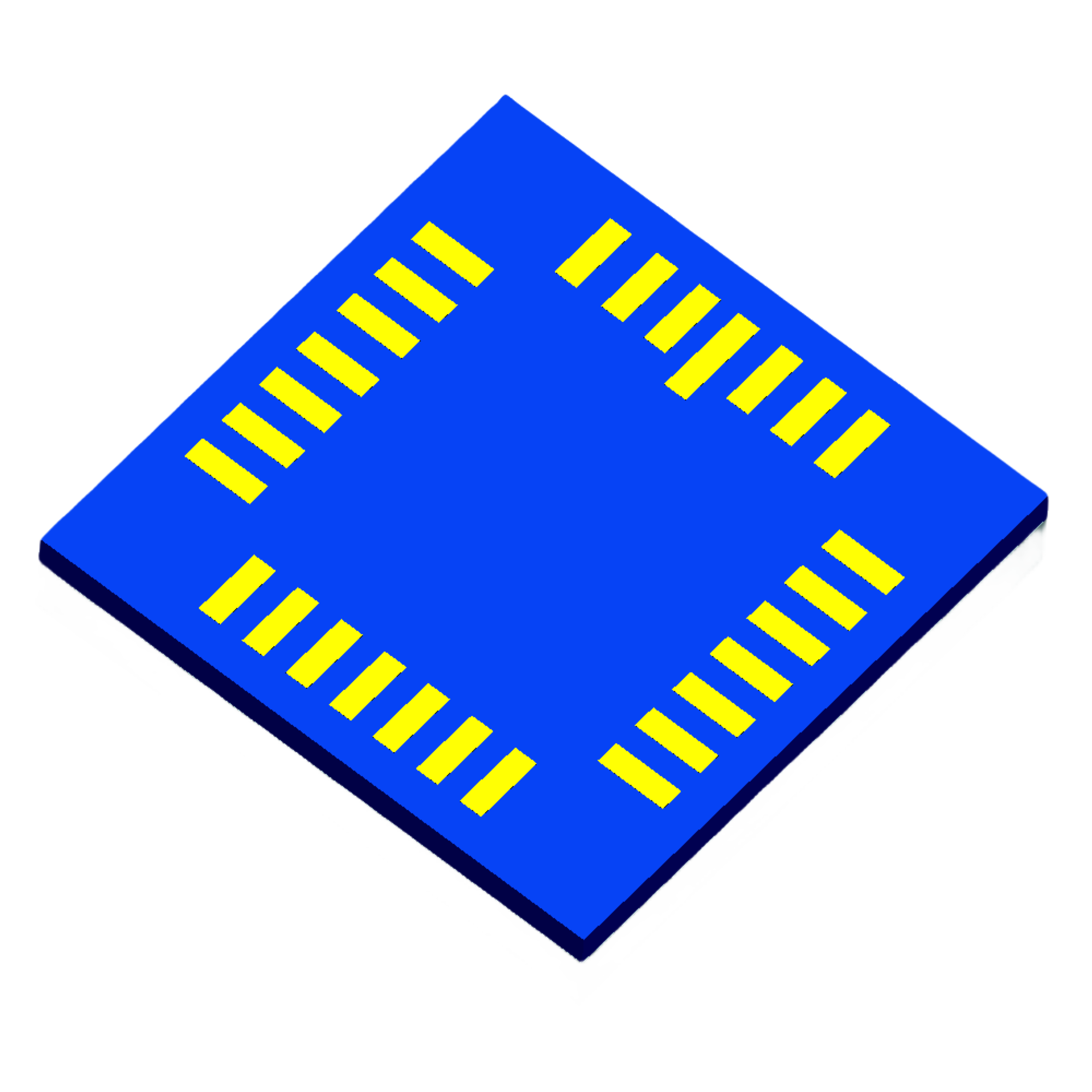

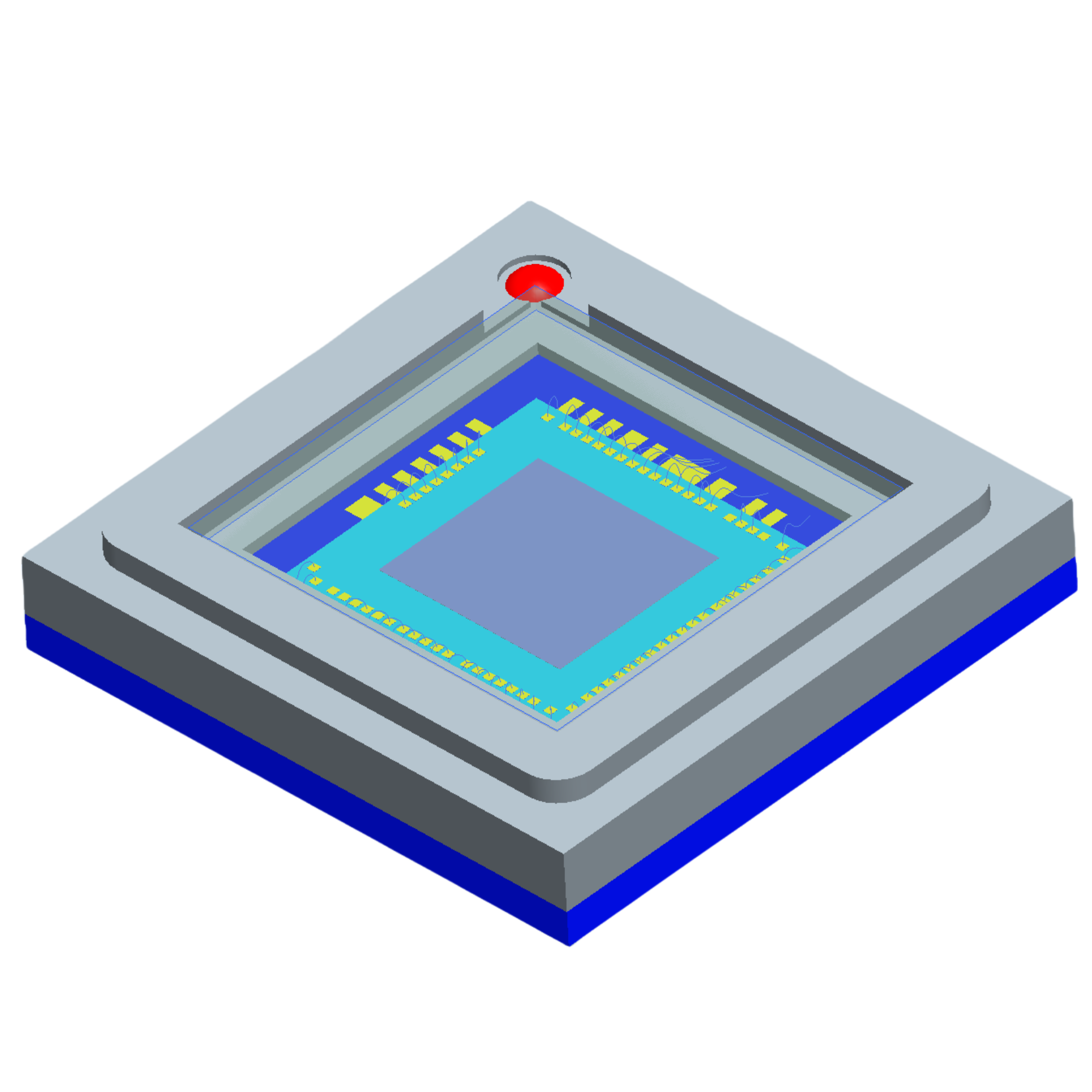

- Using PLCC packaging technology, the size is: 5*5*0.85mm 28pin, suitable for different scene requirements;

- VD55G1 PLCC module filter uses Clear; it is also compatible with 650nm, 850nm, 940nm and 650_850nm, 650_940nm dual-pass filters, etc.; to meet the different needs of customers.

3. Application areas:

-Applied in virtual reality/augmented reality, biometrics, drones, smart homes, IoT devices, 3D imaging, machine vision, barcode scanning, factory automation and other fields.

4. Personalized customization service:

-Customized modules can be customized according to customer needs to tailor products to meet customers' needs.
