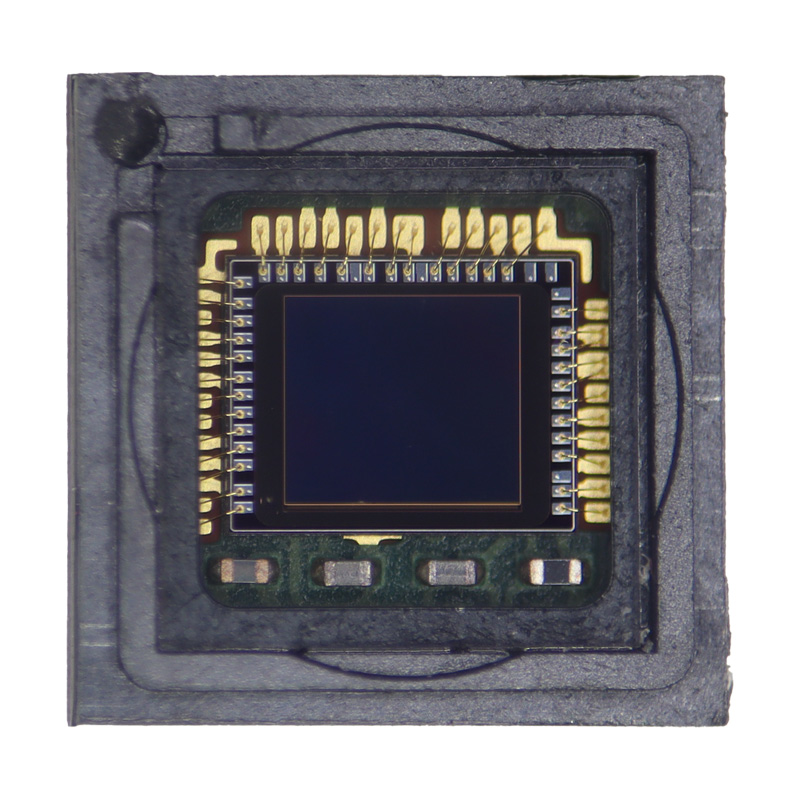

VD55G1CCB0 0.56MP PLCC28 Global shutter

1. Basic parameters:

- Resolution: 800 (H) x 700 (V), 0.56MP VD55G1 combines ST's industry-leading pixel technology, ultra-low power consumption and advanced processing functions, making it an ideal sensor for the next generation of embedded vision systems and smart devices.

- The device is the world's first sensor to use 2.16 µm global shutter pixel technology, which has excellent compactness.

- Optical format: 1/9 inch, the sensor measures only 2.73 x 2.16 mm², suitable for devices with large size restrictions such as AR/VR glasses or personal electronic products.

- Supply voltage: The core voltage is 1.15V, the interface voltage is 1.8V, and the analog voltage is 2.8V. It can work stably under different voltage conditions, ensuring the reliability of the sensor.

- Temperature range: The operating temperature is -30℃ to 85℃, with a wide temperature operating range, which can adapt to different working environments.

2. Technical features:

- Global shutter technology: The global shutter design effectively eliminates motion blur and lighting artifacts, while reducing lighting power consumption requirements.

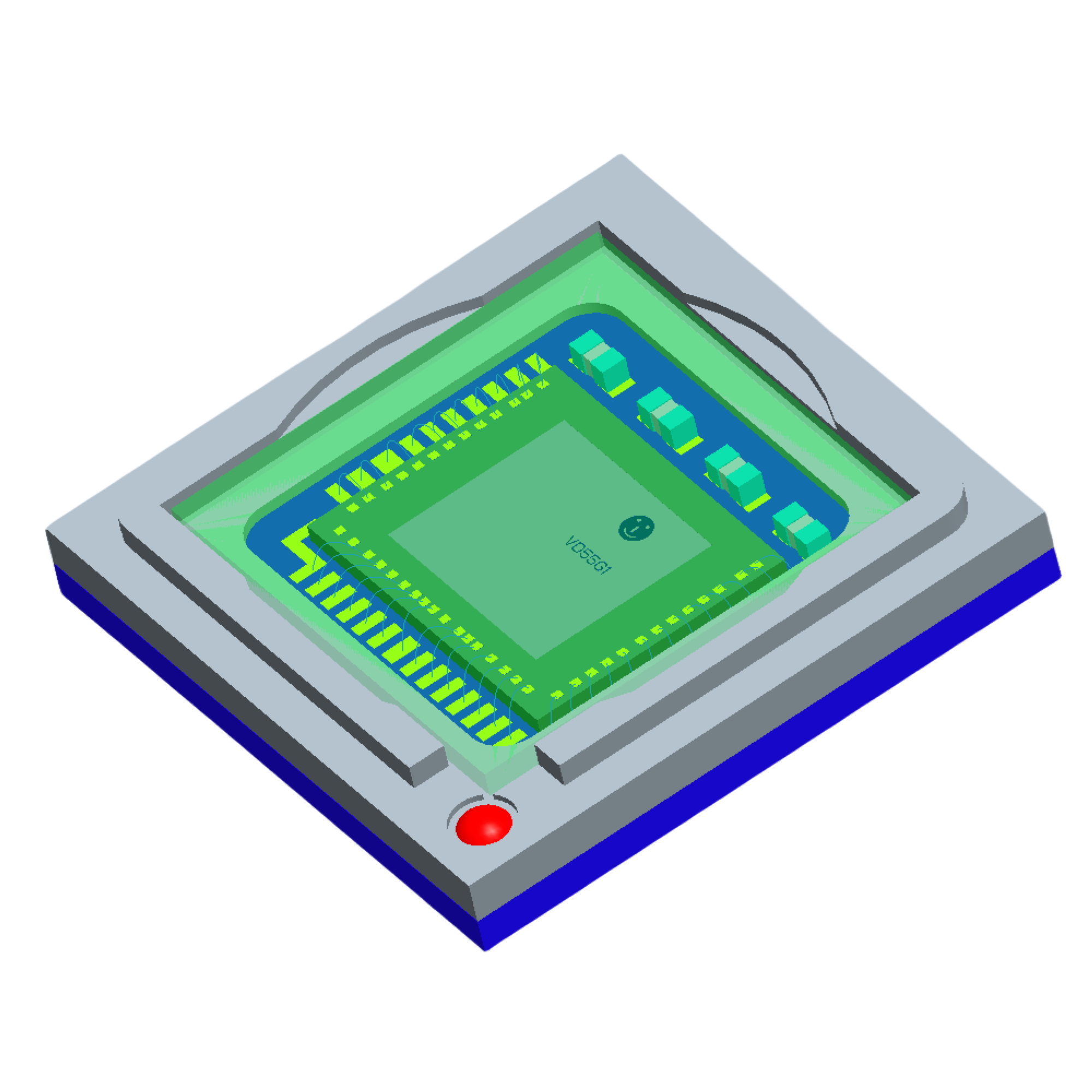

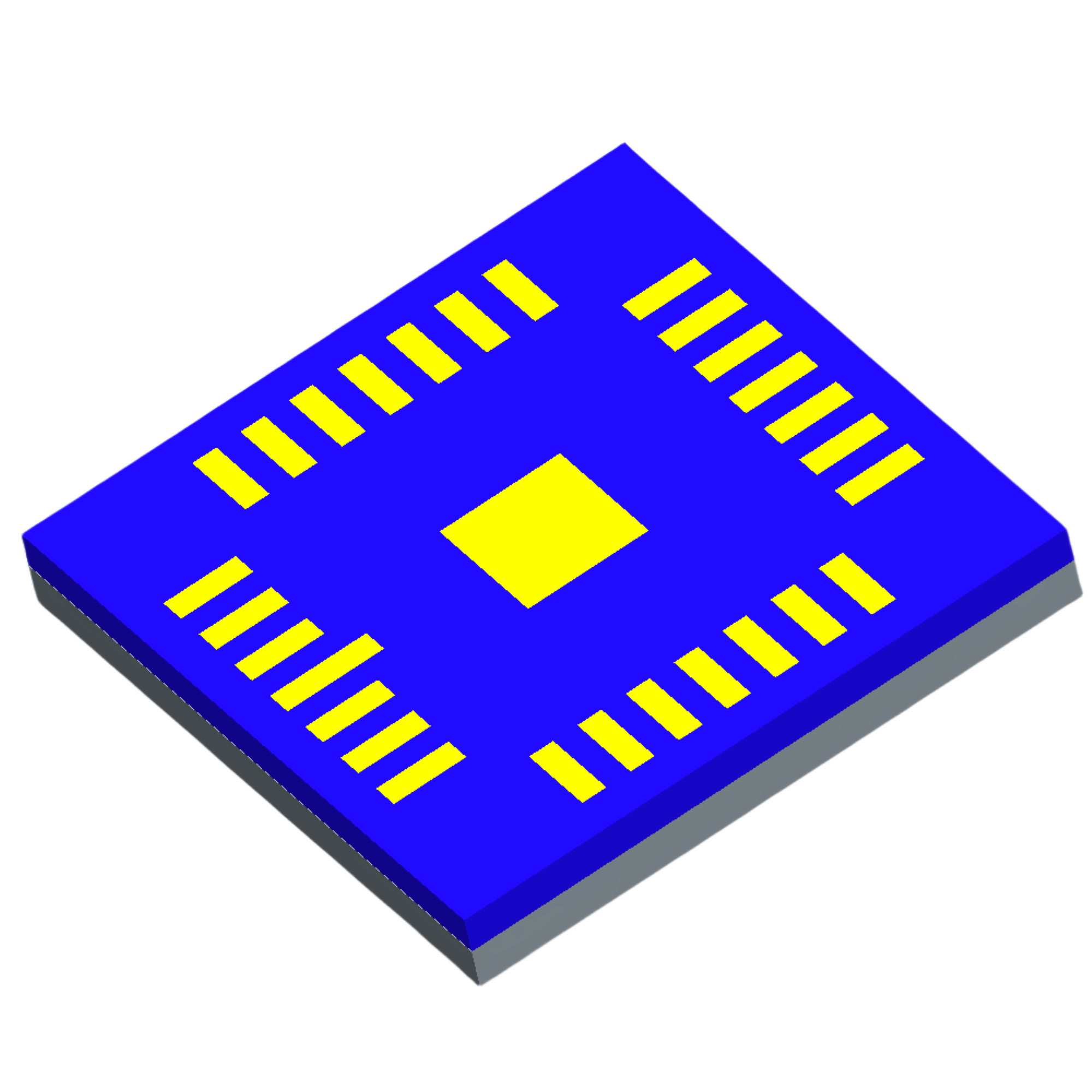

- Using PLCC packaging technology, the size is: 5*5*0.85mm 28pin and 4*4*0.85mm 20pin, suitable for different scene requirements;

- VD55G1 PLCC module filter uses Clear; it is also compatible with 650nm, 850nm, 940nm and 650_850nm, 650_940nm dual-pass filters, etc.; to meet the different needs of customers.

3. Application fields:

-used in virtual reality/augmented reality, biometrics, drones, smart homes, IoT devices, 3D imaging, machine vision, barcode scanning, factory automation and other fields.

4. Personalized customization service:

-Customized modules can be customized according to customer needs to tailor products to meet customers' needs.
